RMS UPGRADE PACKAGES

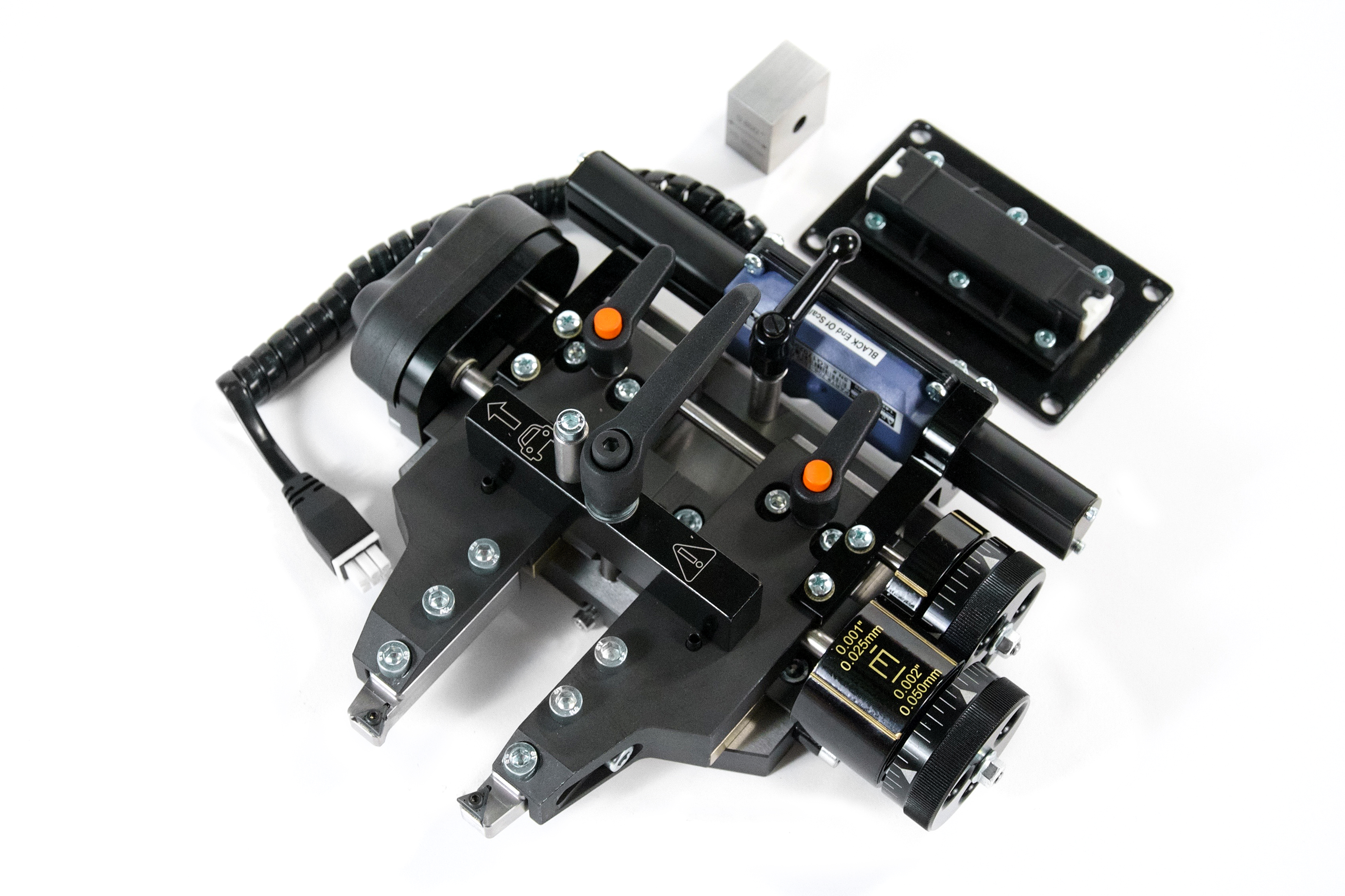

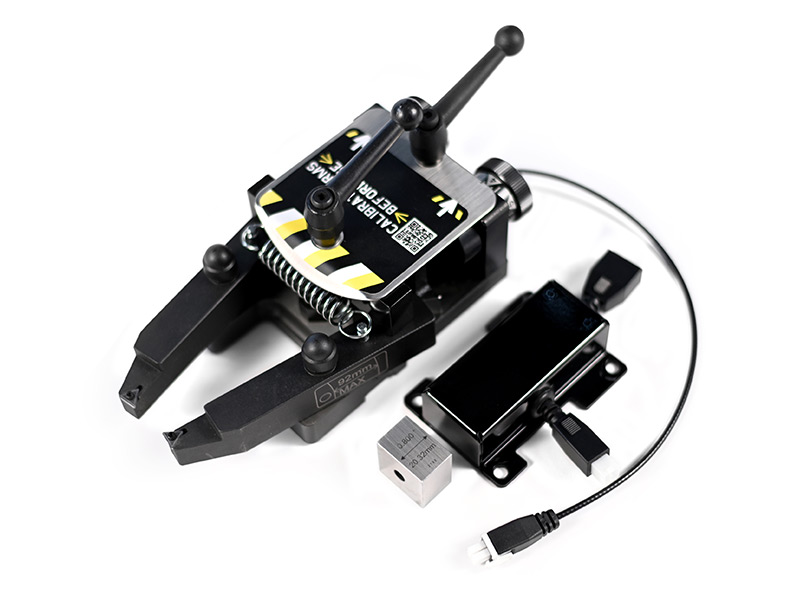

X15 PRO-Spec UPGRADE PACKAGE

Built-in micrometer provides LIVE DIGITAL READOUT of rotor thickness!

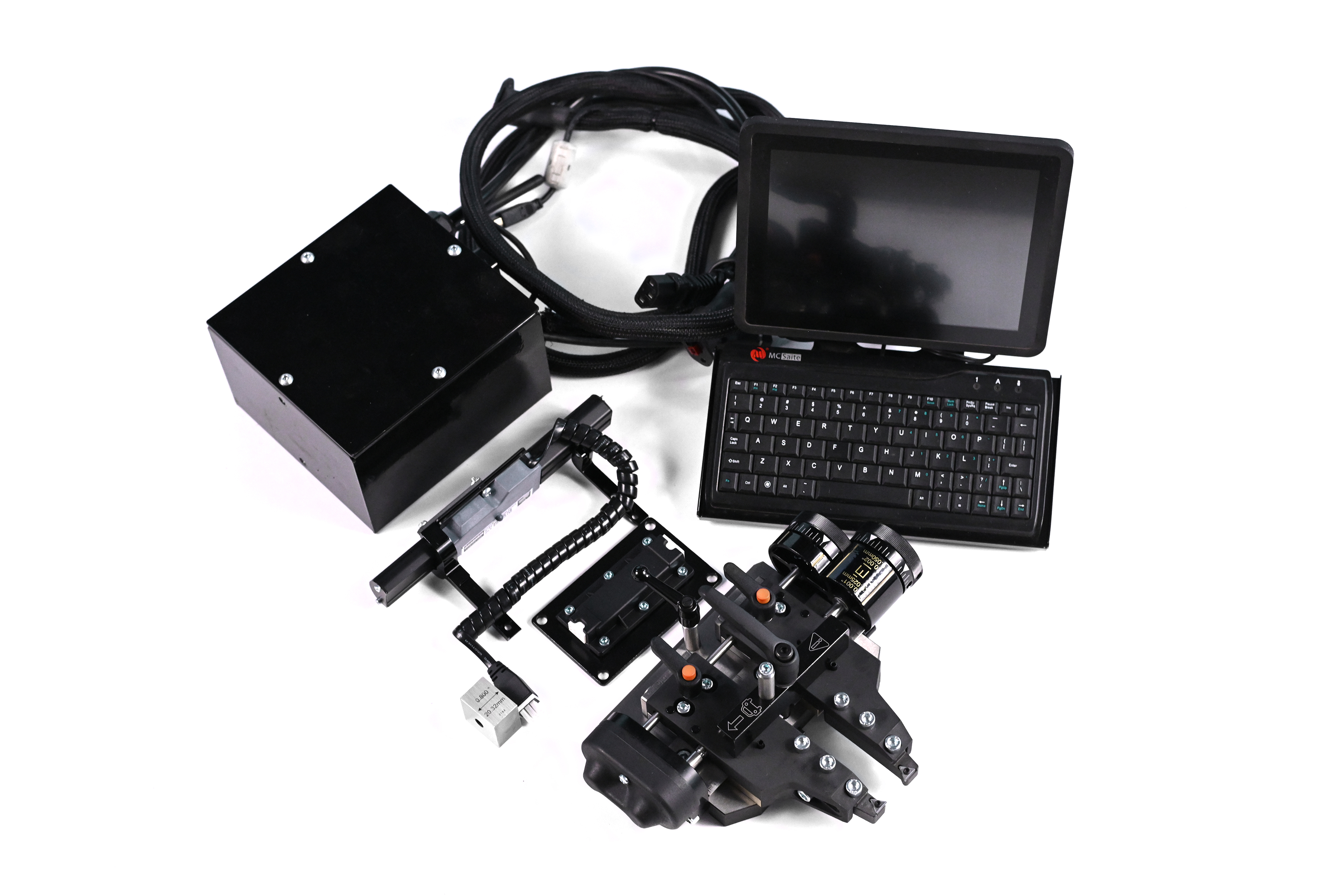

X15 PRO-Spec+ UPGRADE PACKAGE

Directs technician through in-spec repairs and captures data from every brake job!

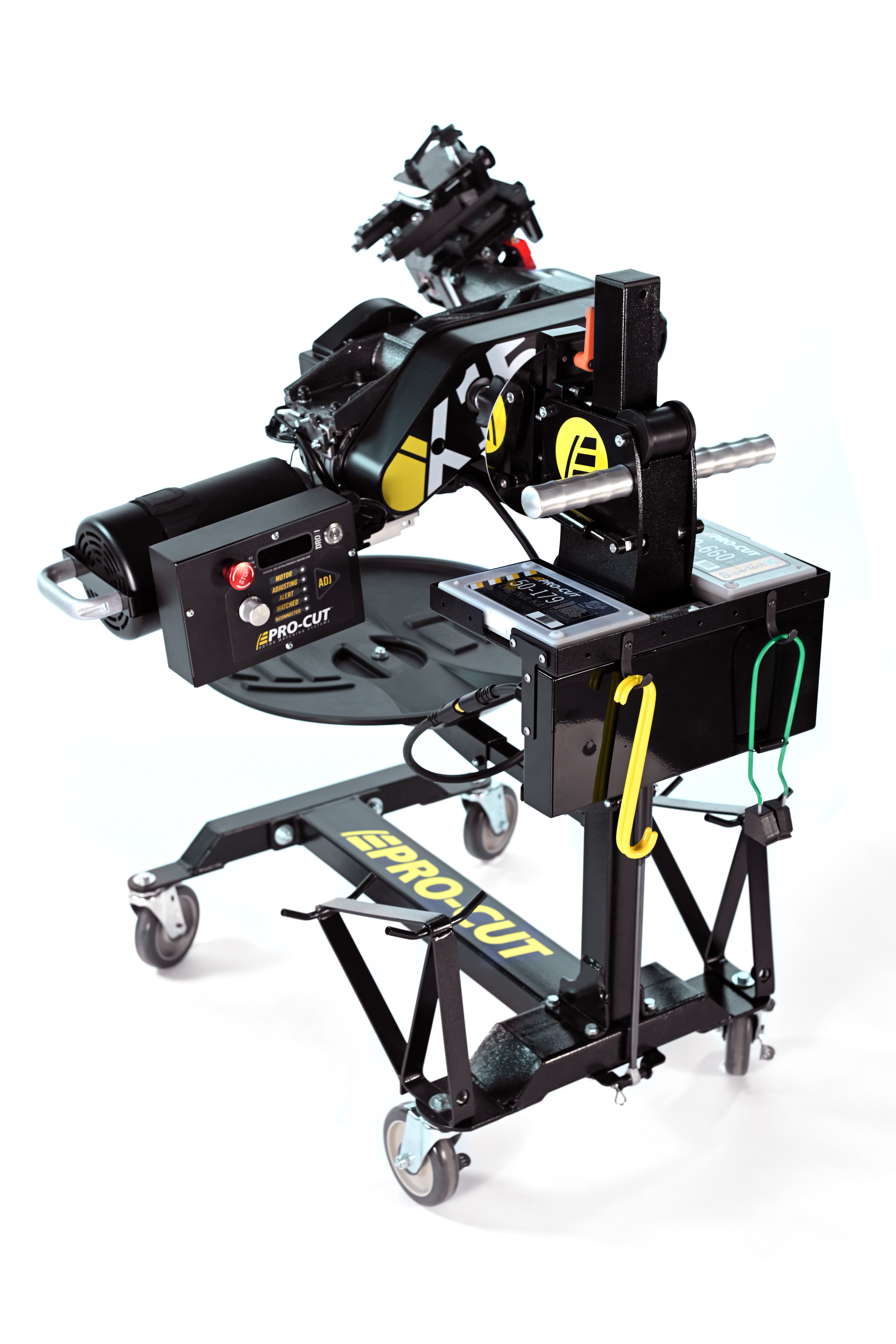

X15

THE Ultimate Power Platform

The X15 is the height of on-vehicle rotor matching power and sophistication, and is the first and only rotor matching system in the world to be driven by a 48v DC motor. The all-new computer system provides disc tracking, maintenance alerts, and variable speed control. Expect smooth operation, tighter run-out tolerances, and superior surface finishes. The 48v DC difference is incredible! You need to see it to believe it.

What's Included

  • Pro-Cut X15 48V DC Lathe

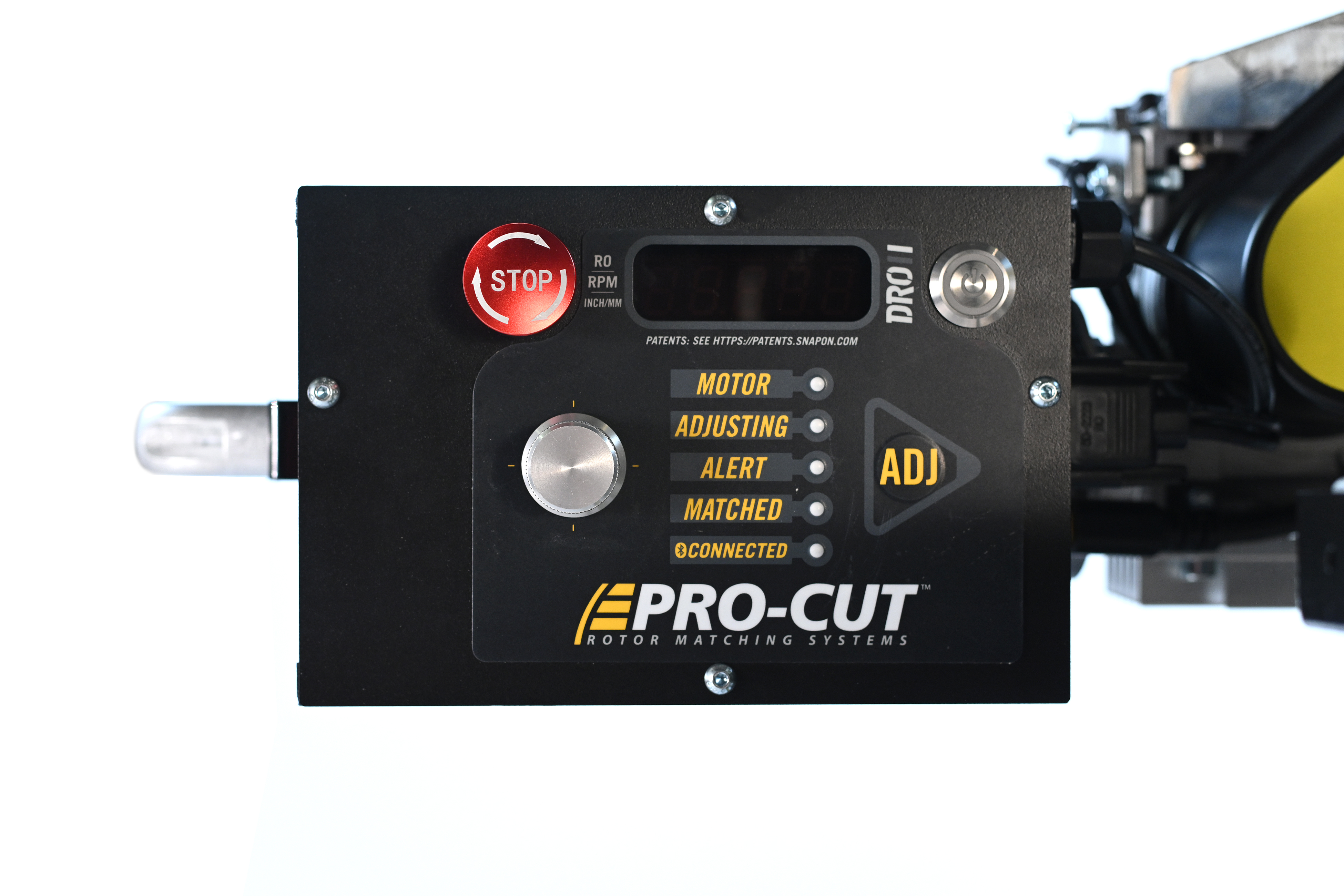

  • DRO computer box (accepts G2X/PRO-Spec+ upgrades)

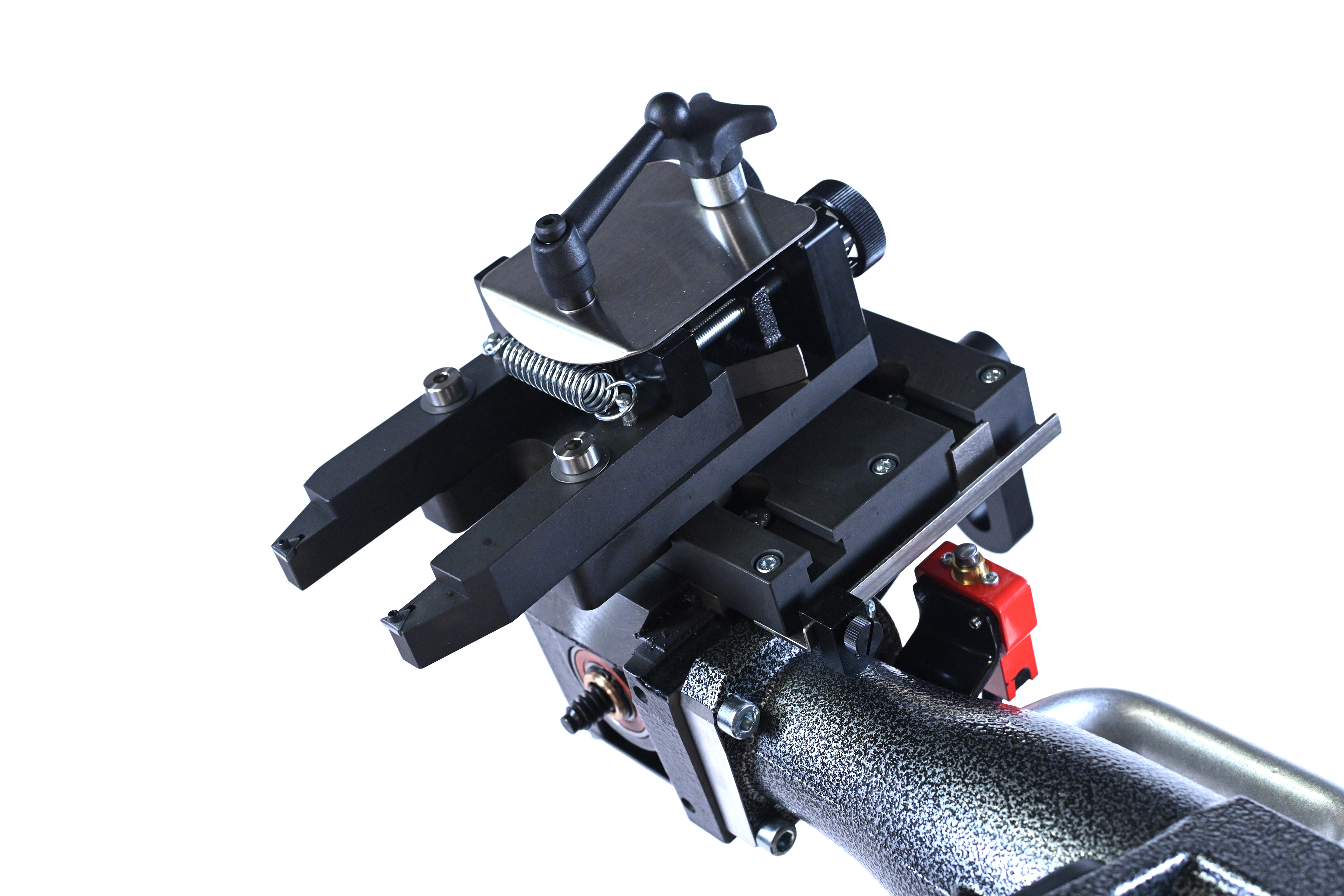

  • Performance-Plus cutting head
  • 4 wheel, adjustable height trolley
  • 6 adapter package (Std., most cars & light trucks)
  • Standard accessories included
  • On-site installation and training included

Watch

Machine Specifications

PERFORMANCE PLUS CUTTING SPECS
  • Maximum Rotor Thickness 2.0"
  • Minimum Rotor Thickness 0.20"
  • Maximum Rotor Diameter 17.1"
  • Maximum Friction Face 3.82"
  • Maximum Depth of Cut 0.015" / Side
  • Weight 8.12 lbs
  • Spindle Speed 60-130 RPM
  • Carriage Speed 0.005" / rev.
  • Motor 1 HP continuous, 2.0 HP Peak
  • Shipping Weight 200 lbs.
  • Electrical Supply Universal
  • Feed Distance 7.09" / 7.48" optional

SELL GREEN, THRILL CUSTOMERS and MAKE MORE MONEY!

The majority of the rotors that are thrown away can been saved and made as good as new with a Pro-Cut Rotor Matching System. Even in areas where rust is a challenge you�ll find that most rotors can be machined and matched to the hub. Your customer gets a premium brake job without buying un-needed parts� and your shop makes higher profit on the job.
